AvaLight-XE ксеноновый импульсный источник света

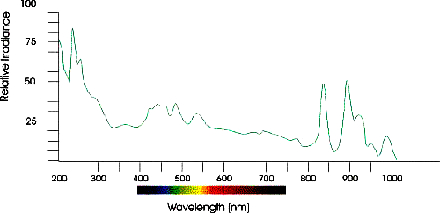

Spectral Output

200 nm to 1000 nm

Total Optical Power output

39 µJ per pulse (average 3.9 mW)

Optical Power in 600 µm fiber

1.8 µJ per pulse (average 180 µW)

Synchronization Input

15 pin sub D connector, TTL level

Pulse Duration

5 µsec (at 1/3 height)

Pulse delay

6 µsec

Pulse rate (max.)

100 Hz

Bulb Life

min. 109 pulses

Connector

SMA-905 connector

Power requirement

12 VDC/550 mA

Dimensions

175 x 110 x 44 mm
